7 Enhanced regularization

Regularization is key to subsurface imaging

\(\Rightarrow\) Add any information about the subsurface:

correlation lengths and angles
structural boundaries (from boreholes, seismics, GPR)
point information (samples, borehole logs, )
limits of the possible parameters (e.g. positivity, natural bounds)

7.1 Smoothness constraints

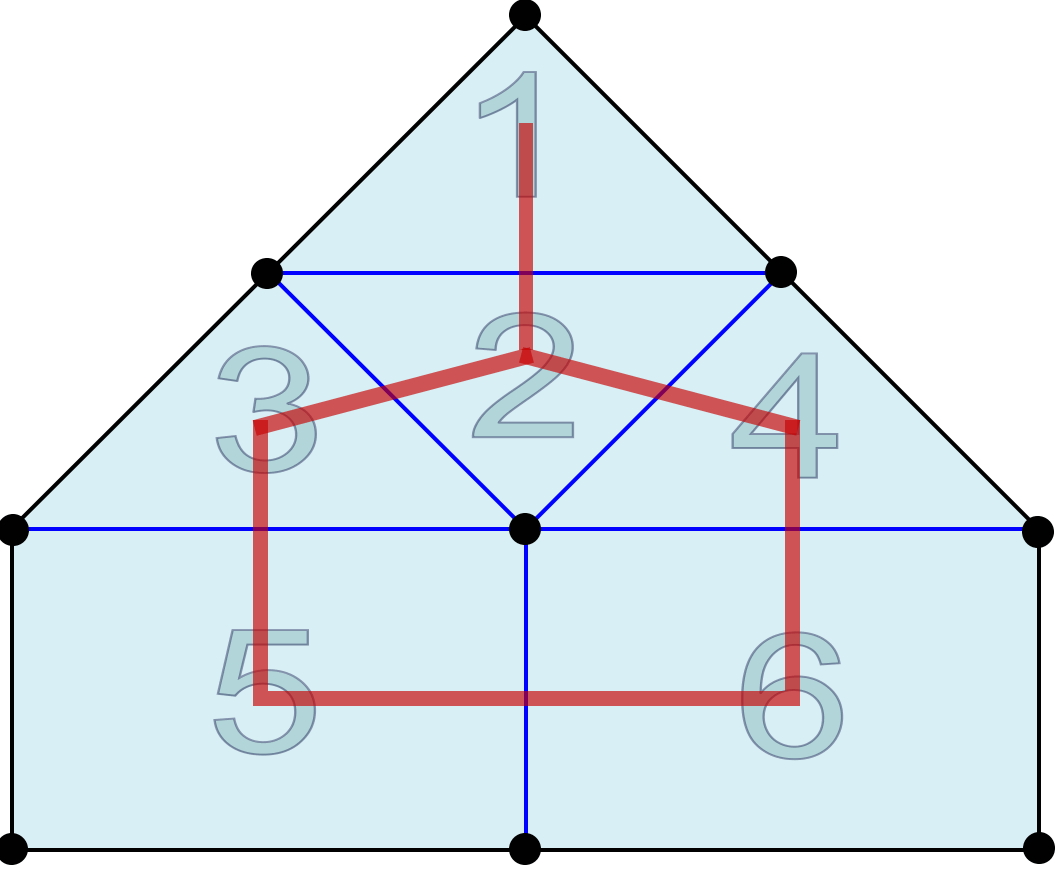

4 model cells, 3 boundaries

1st order derivative \[ \vb C = \mqty(-1 & 1 & 0 & 0\\0 & -1 & 1 & 0\\0 & -1 & 0 & 1) \] can be weighted by

inverse midpoint distance
boundary size (length, area)
information about boundaries

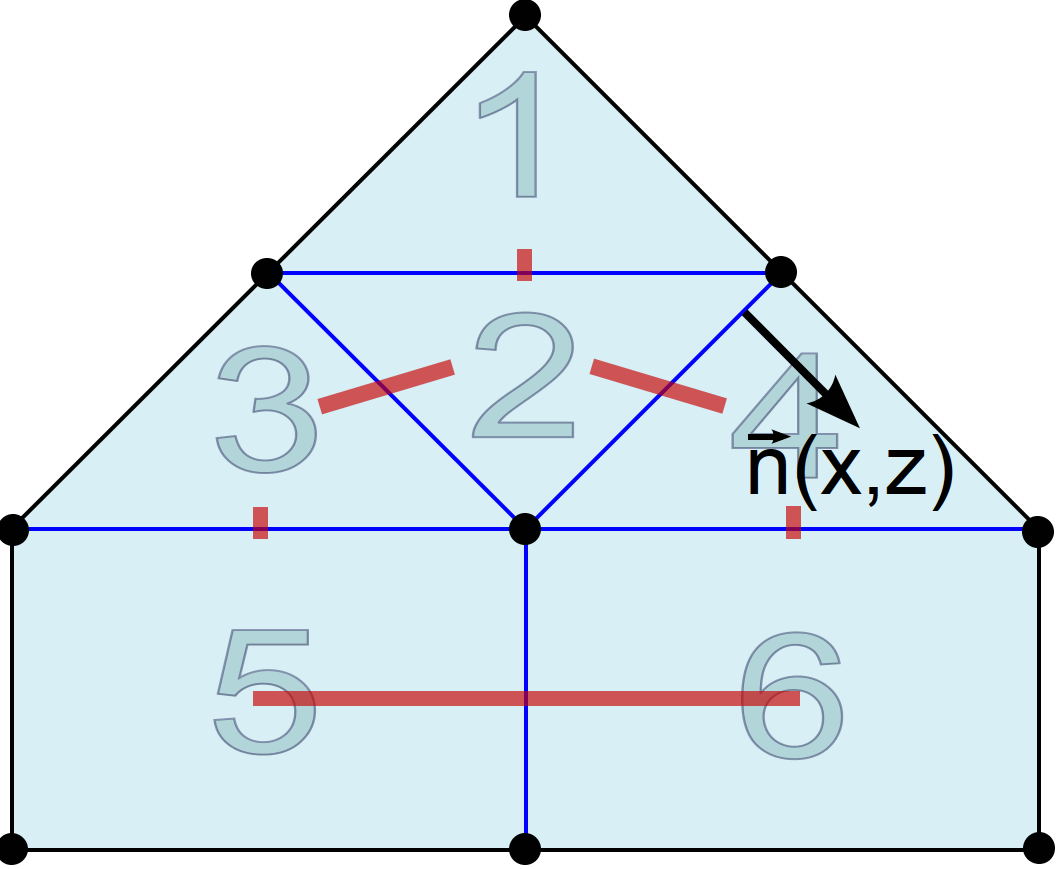

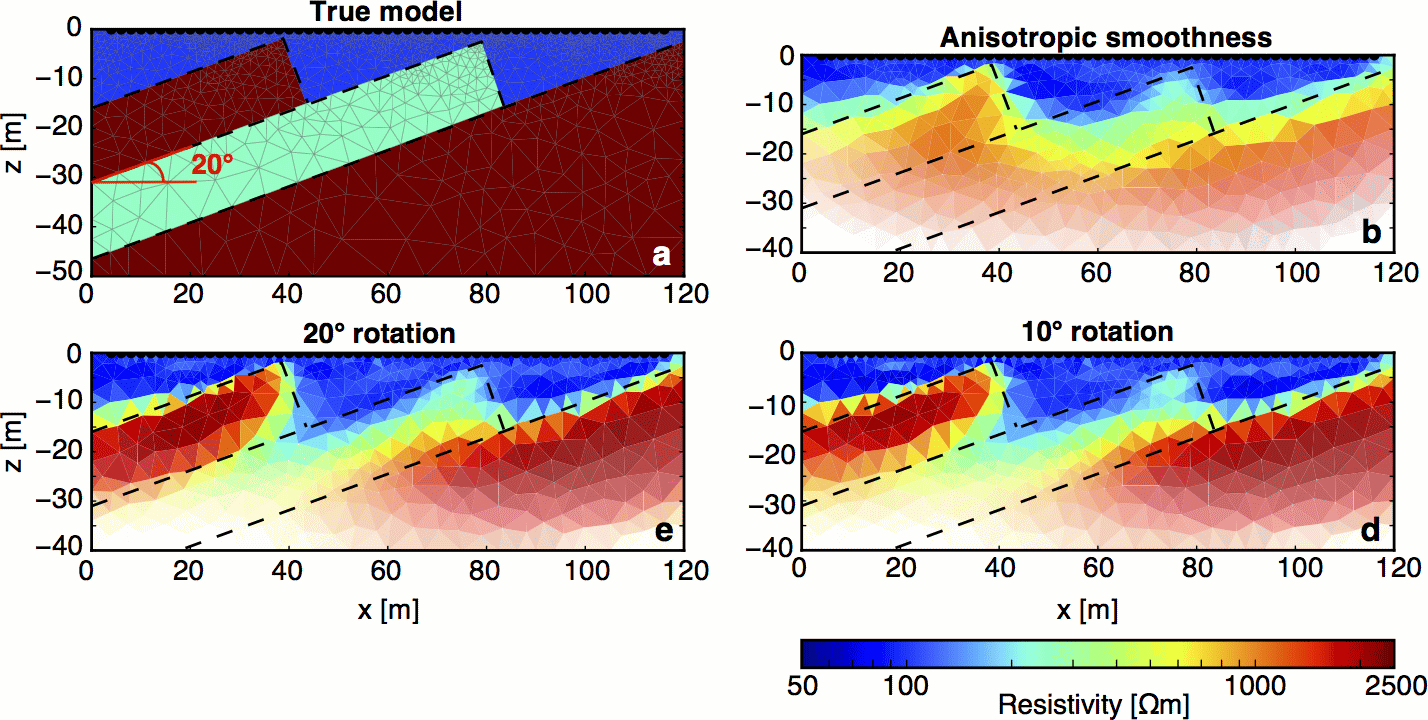

7.2 Anisotropic smoothness

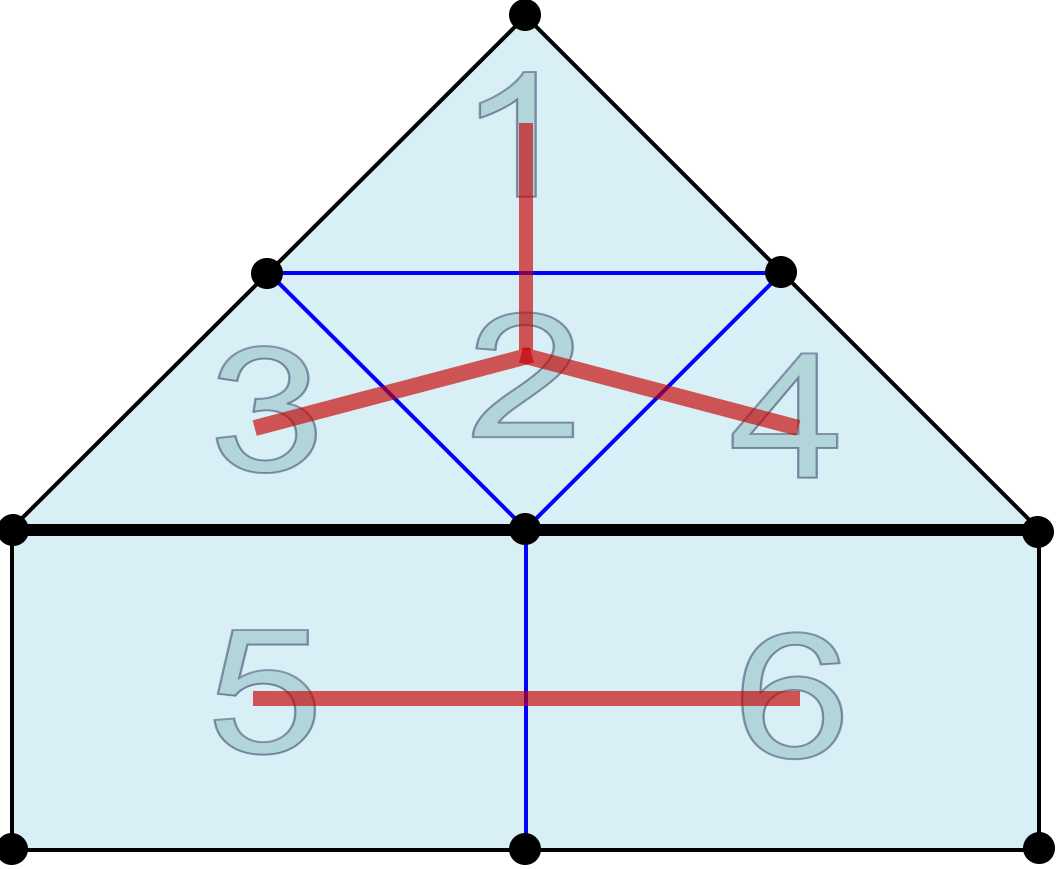

7.3 Structural decoupling

Structurally constrained inversion (Bergmann *et al.* 2013)

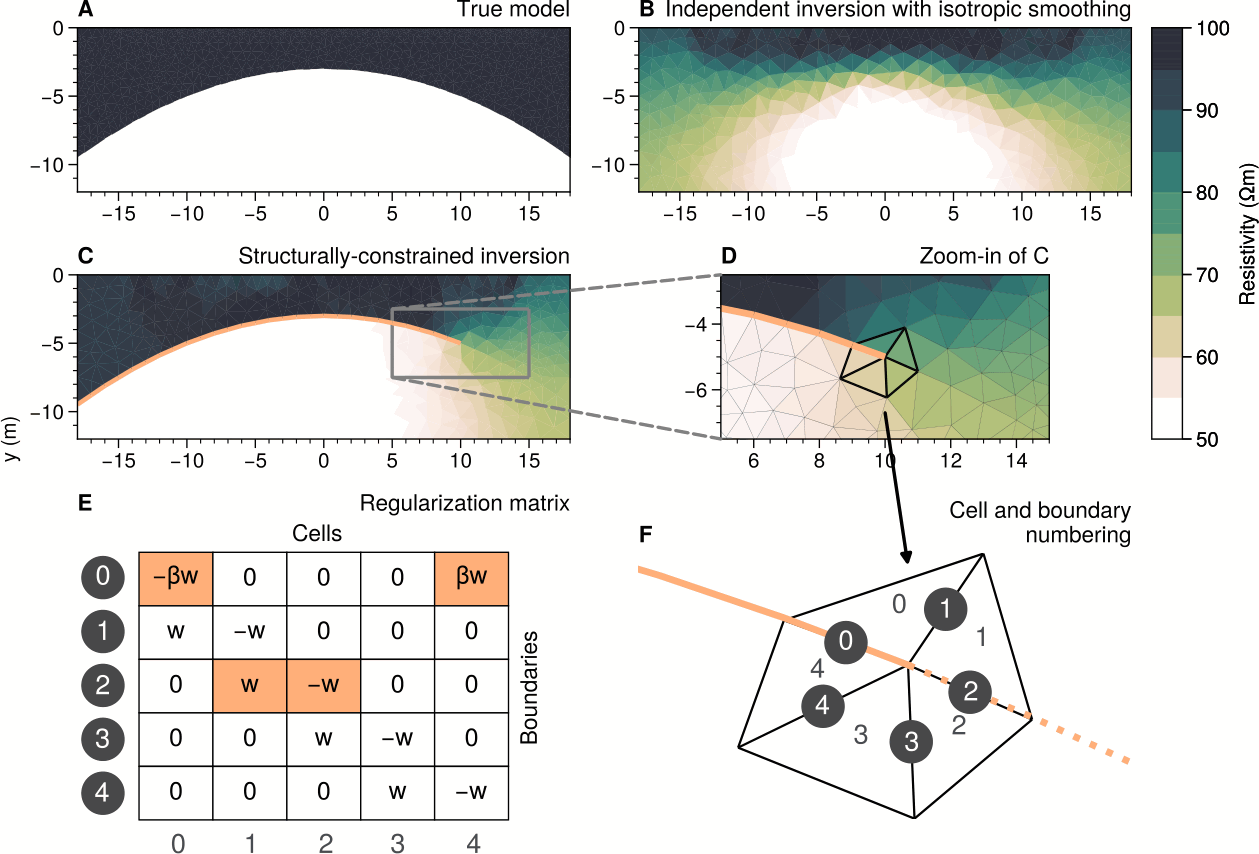

Derivation of smoothness matrix (Wagner and Uhlemann 2021)

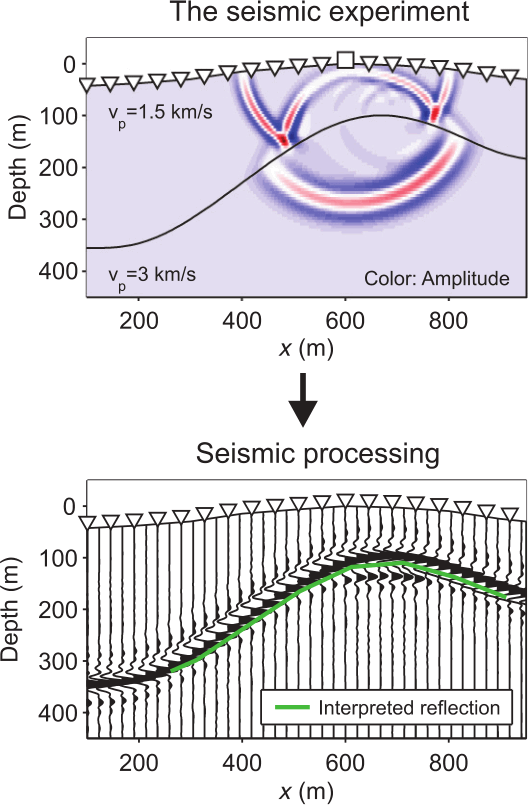

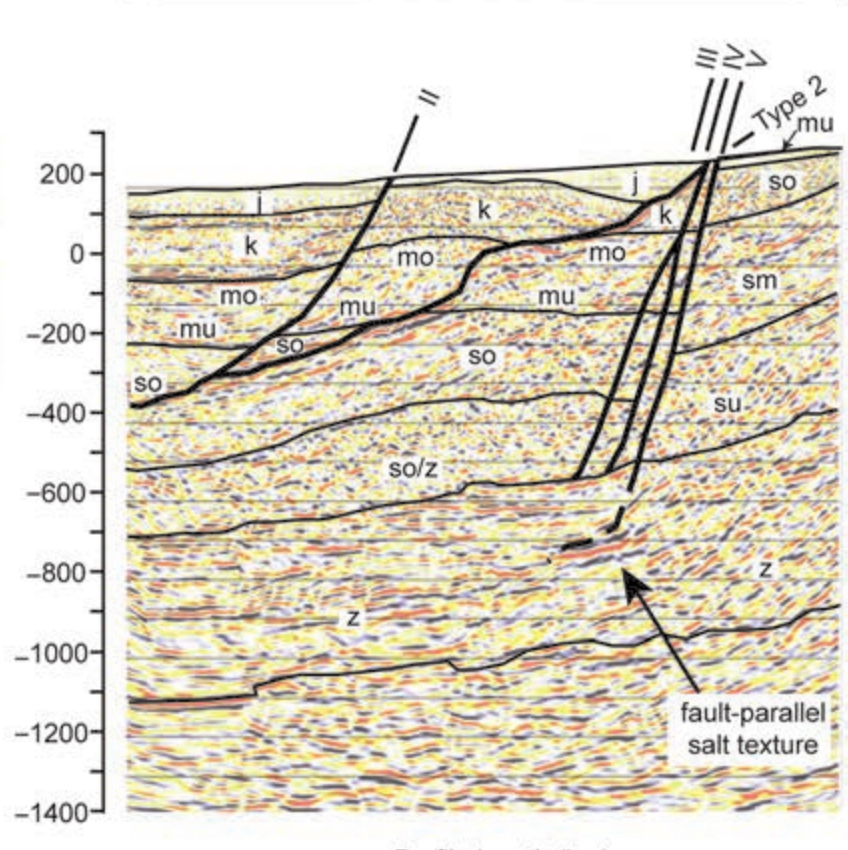

Seismic cross-section (Tanner *et al.* 2020)

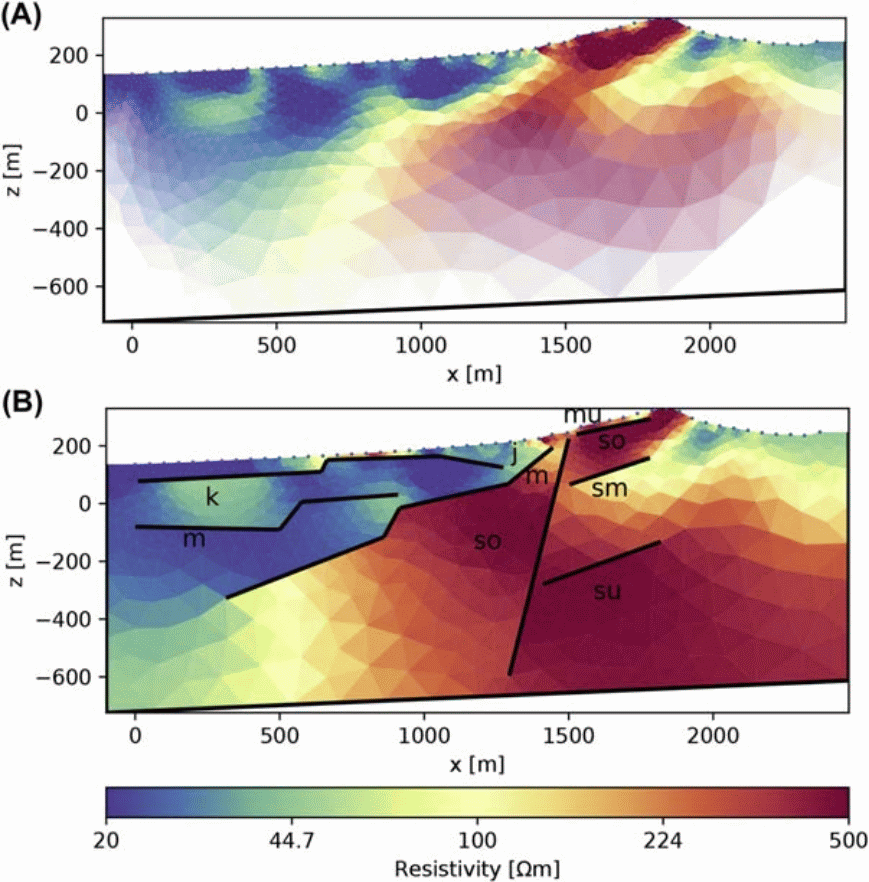

ERT inversion result without (a) and with (b) structural constraints from seismic (Tanner *et al.* 2020)

7.4 Selected smoothness

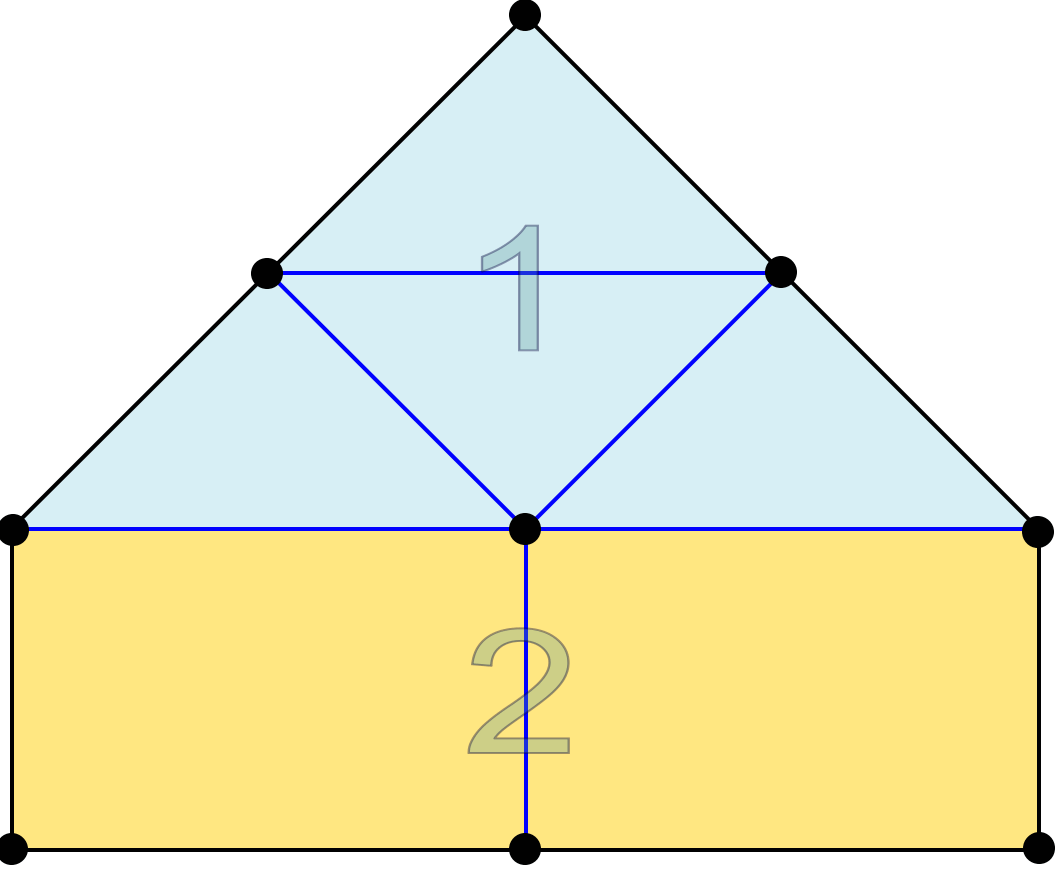

7.5 Model reduction

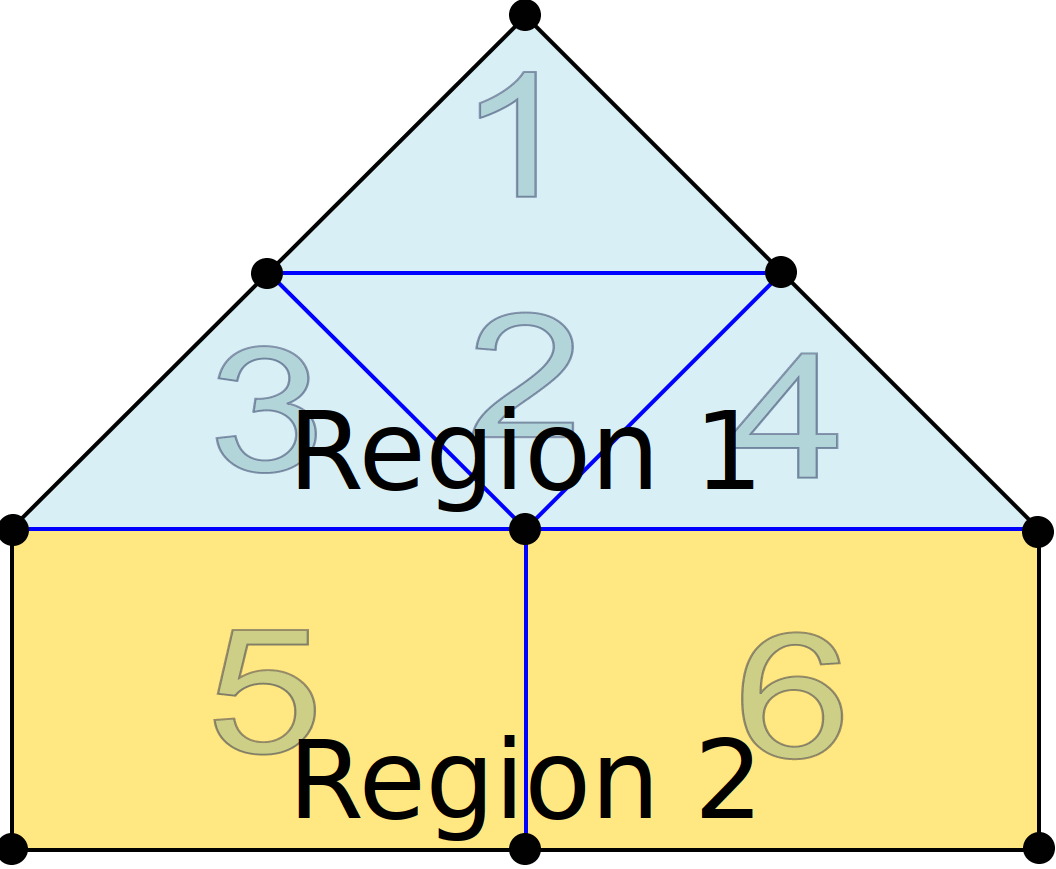

7.6 Region-wise settings

Placement of mesh divided into different regions in greater for

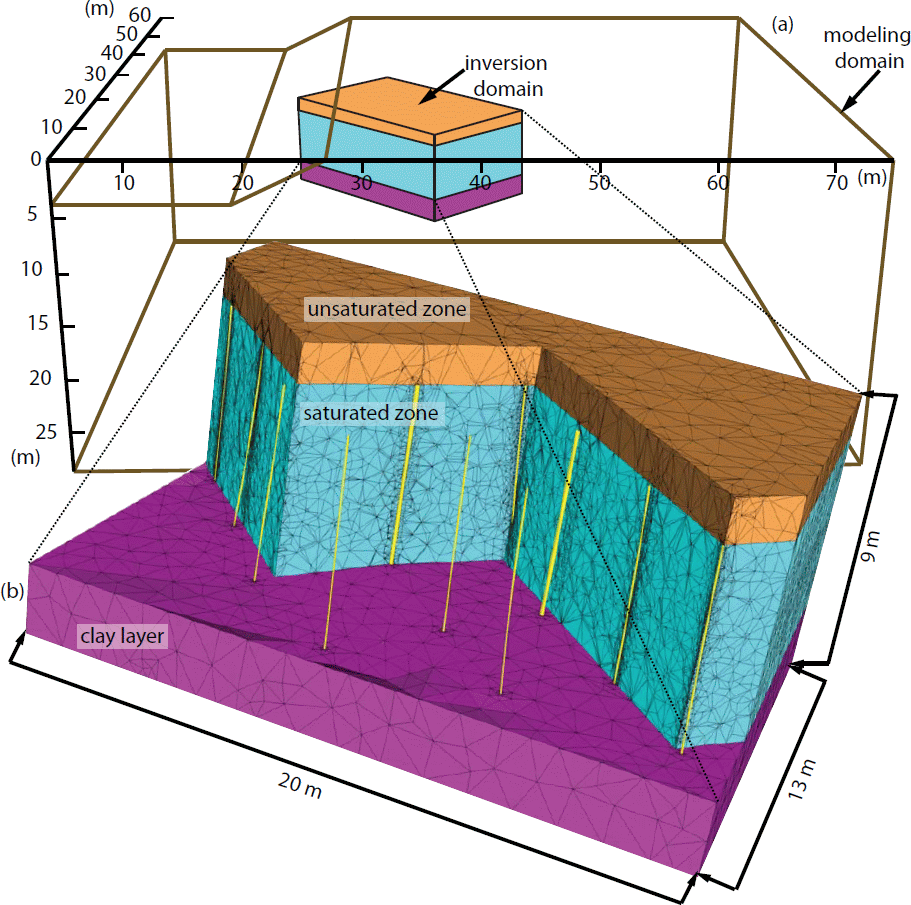

Mesh with different regions (Coscia *et al.* 2011)

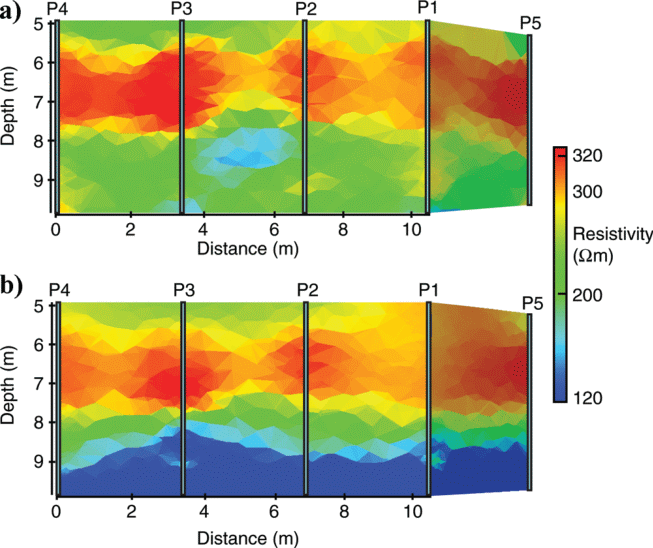

Cross-section with decoupled (a) and coupled (b) regions (Coscia *et al.* 2011)

7.7 Geostatistical regularization

\(\vb M_{ij}=\sigma^2\exp(-3\sqrt{\frac{|x_i-x_j|}{I_x}^2+\frac{|y_i-y_j|}{I_y}^2})\quad\Rightarrow\quad \vb C=\vb M^{-0.5}\)

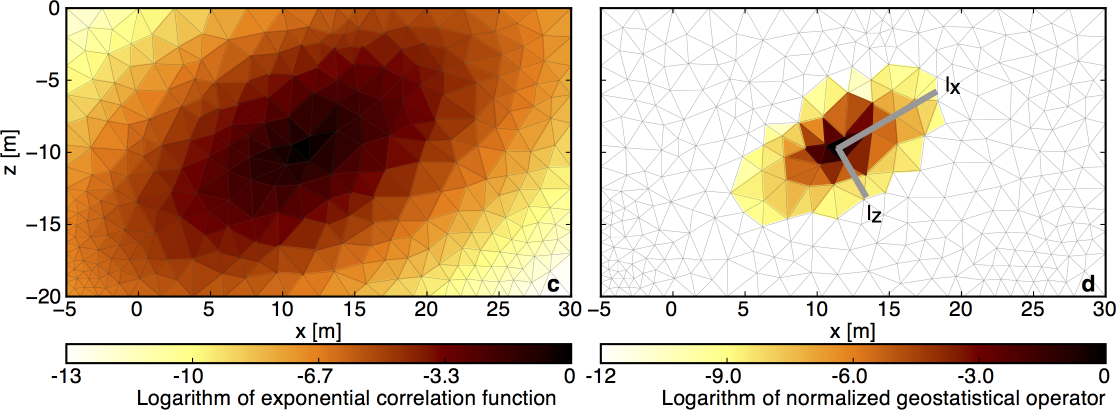

Geostatistical correlation function (left) and regularization operator (right) after Jordi *et al.* (2018)

7.8 Geostatistical regularization - example

Synthetic model (a) and inversion results with classic smoothness constraints (b), true correlation (c) and slightly wrong correlation (d) (Jordi *et al.* 2018)
